Modular Small Scale LNG Plants
Small-scale natural gas liquefaction plants. A modular system on fully finished skids and transportable in maritime standard ISO containers.
| NBC 1000 | NBC 2000 | DENBC 3000 | DENBC 4000 | DENBC 5000 | DENBC 6000 | |
|---|---|---|---|---|---|---|
| LNG Gallons Per Day | 17,000 | 34,000 | 50,000 | 70,000 | 86,000 | 100,000 |
| LNG Tons Per Day | 27.9 | 55.8 | 82.0 | 114.8 | 141.1 | 164.0 |
| Million Cubic Feet of Gas Per Day | 1.307 | 2.613 | 3.843 | 5.380 | 6.610 | 7.686 |
| Cubic Meters of Gas Per Day | 37,175 | 74,350 | 109,339 | 153,074 | 188,063 | 218,678 |

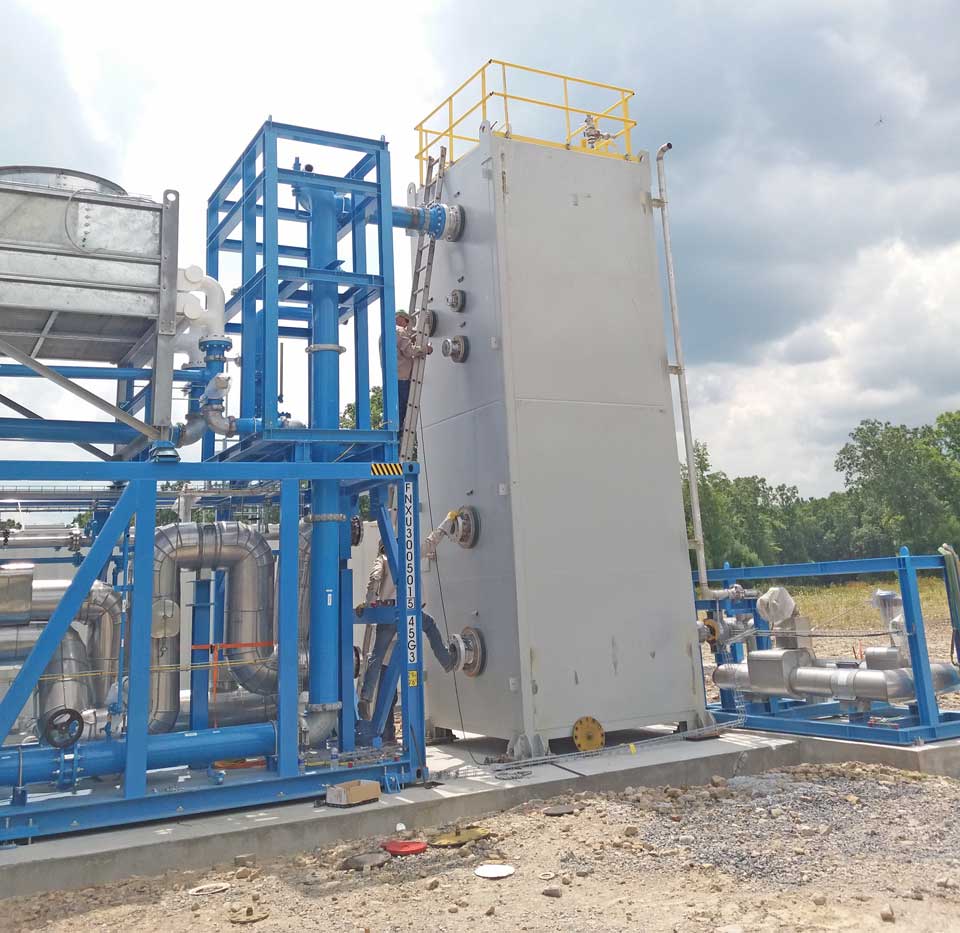

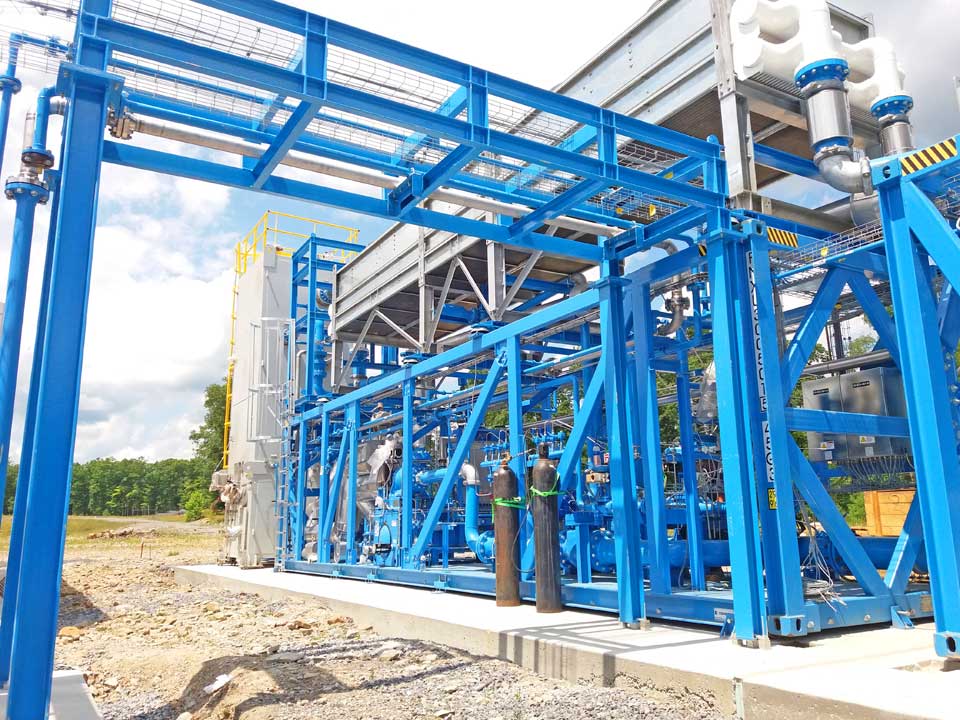

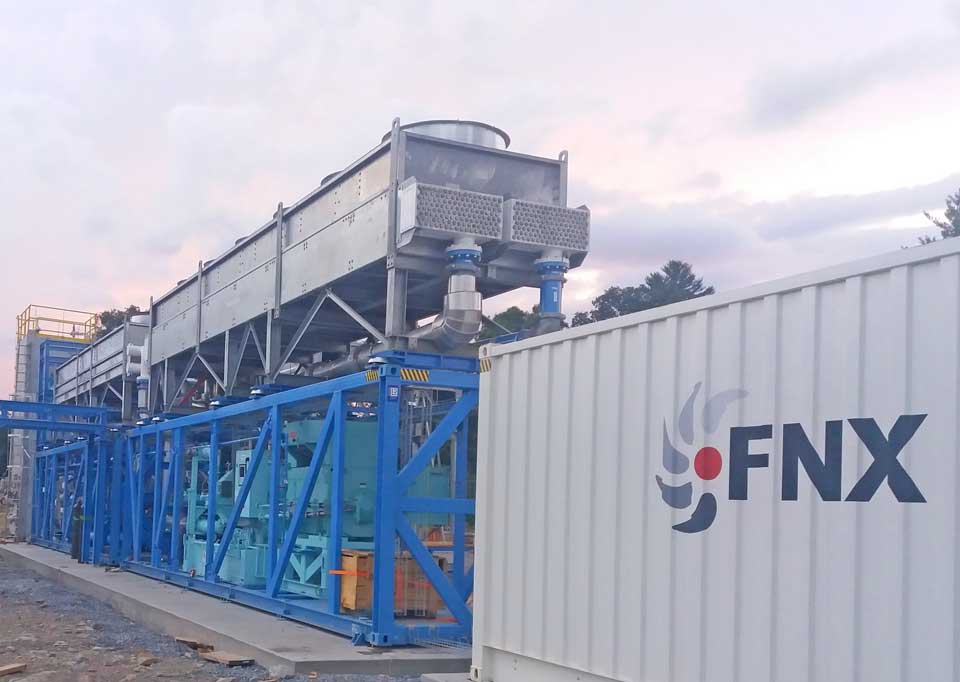

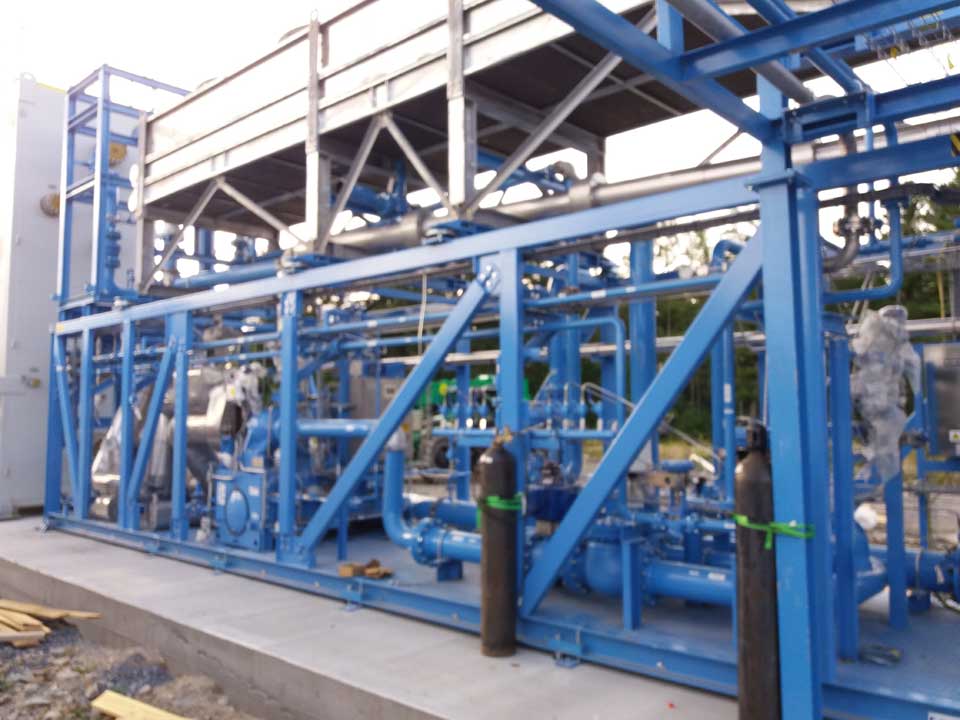

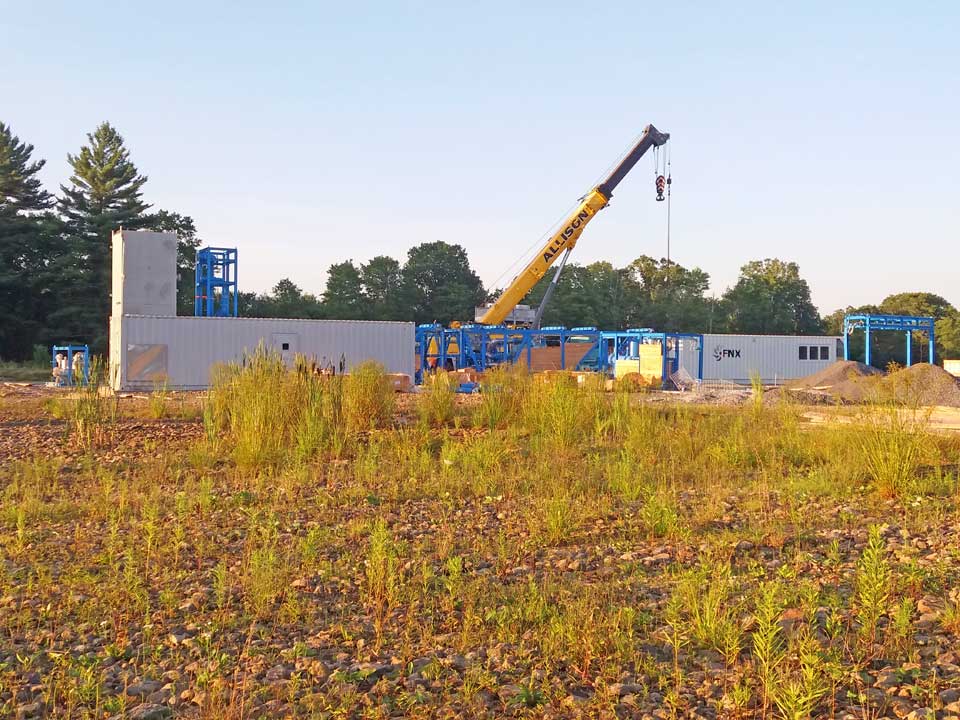

Below Photo Gallery: This plant is currently in the process of deployment in the United States.
Plants use the Claude Brayton closed-loop nitrogen cycle for the NBC series of equipment for natural gas liquefaction. Widely proven in the industry for its simplicity and robustness.
Each module is assembled and tested at the manufacturing facility. The modules contain all required piping and cabling already built in each unit. This avoids the need for pipe racks, cable trays and trenches in the field. The field deployment of a plant then becomes a “Plug & Play” exercise. Qualified engineering support with a background in both European and American Standards.
